Happy wag

The happiest thing a dog can do: the tail goes fast, the ears flap, the head swings and the whole body bounces with each wag.

Use it in a cartoonOpen it in the block editorThe pack file (JSON)

What it is for

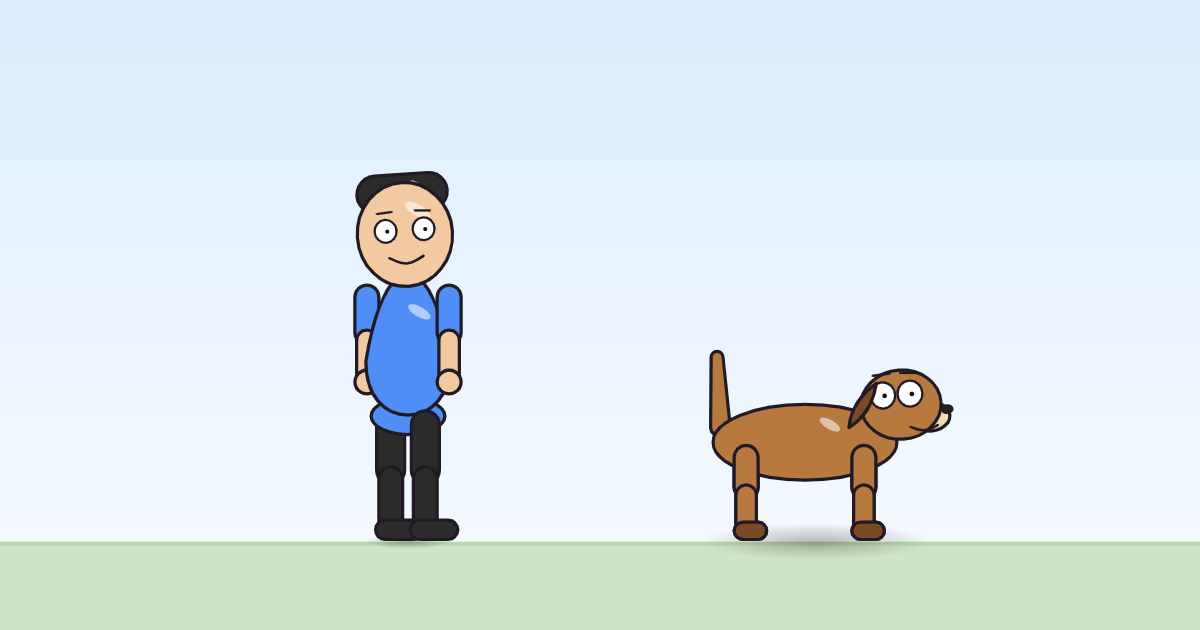

Happy wag is made for animals with tails, the dog and the cat, and for the monster, whose tail and antennae answer it. It says delight without a word: an owner coming home, a treat, a friend back from a trip. In the example cartoon Grump the dog finally does it when he admits he is "maybe a little" happy. On the person and the kid there is no tail to wag, so they keep the happy face, the head swing and the bounce. The bird's short tail wags too, though it is mostly hidden behind the round body.

The principle it shows: overlapping action

Four parts move at four speeds: the tail a full swing every 0.28 seconds, the ears every 0.7, the head every 1.4 and the bounce every 0.28. Because they overlap rather than move together, the character looks loose and alive, like a real animal whose parts each have their own weight. Line them all up at one speed and it would look like a wind-up toy.

The program, line by line

when it starts
  look happy
  swing tail 28° · every 0.28 s
  swing ears 10° · every 0.7 s
  swing head 5° · every 1.4 s
  bob 6 · every 0.56 s

• when it starts and look happy — the face changes to happy.
• swing tail 28° · every 0.28 s — the tail swings 28 degrees each way, one full wag every 0.28 seconds (about three and a half a second).
• swing ears 10° · every 0.7 s — both ears swing 10 degrees outward together, every 0.7 seconds.
• swing head 5° · every 1.4 s — a slow 5-degree swing of the head.
• bob 6 · every 0.56 s — the body lifts 6 pixels. A bob's wave holds two lifts, so with every 0.56 the body bounces every 0.28 seconds, once for each wag.

Try this

1. Make each wag take 0.6 seconds instead of 0.28. The tail now sweeps lazily, a contented wag rather than an excited one.

   In the program: swingPart · every 0.28 → 0.6

2. Swing the tail 60 degrees instead of 28. The wag now fills the space behind the dog, the kind that knocks things off a table.

   In the program: swingPart · deg 28 → 60

How it differs from Whip tail and Floppy hop

Whip tail also swings the tail, but sends the swing down the tail one segment after another, so the tip whips and curls; Happy wag turns the whole tail at its base, a faster and simpler wag. Floppy hop is about hopping, with the ears and tail flopping after each landing.

Works on

c4c:beh:wag · version 1.0.0 · CC0 (public domain) · by Jabbertoon
